ARMORING

Depending on the level of protection and location of our customers, armouring a vehicle is between 4 to 5 weeks. We customize vehicles with some of the highest grade materials available on the market, including aramid, armored glass and high-strength steel to ensure that a vehicle is protected against threats including military grade and high-power small arms fire, in accordance with the British BS 5051, European EN 1063 and NTC 1417 regulations, and the international regulation UL752 and European DIN.
The safety and security of our customer and their employees is something that is taken seriously by each Defence Armor employee. We take pride in knowing that each product we produce is helping
to secure the life and security of not only each person that uses our product, but also the family that person represents.
Defence Armor uses independent testing labs to perform ballistic certification for all materials used in the manufacture of armored vehicles. Multiple samples are sent to ensure the appropriate level of protection is achieved using various types of ammunition.
All testing documents and certifications are kept on file.

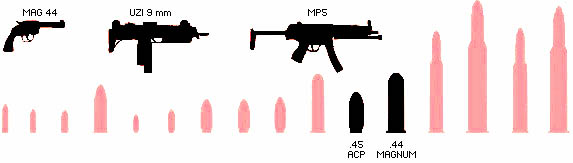

LEVEL 4
Ballistic protection against: Calibre Magnun 44.
Windows Glass: 18,6 mm aprox.
Armoured parts: Doors, body structure, roof frame, panels' retainers, floor, roof, dash and console reinforcement, fuel tank, Teflon tiers rings, tiers, reinforce bumpers and sides.
Added weight: 160 Kg average, depending on vehicle structure.

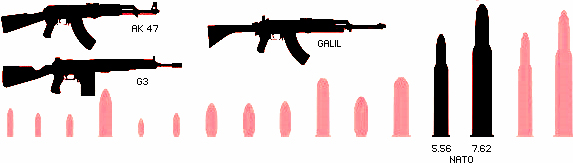

LEVEL 5
Ballistic protection against: AK 47 / G3 / GALIL / FUSIL 5,56.
Windows Glass: 40 mm aprox.
Armoured parts: Entire cap in ballistic steel, floor covered with explosive wave dissipation and anti-fragmentation fibber, doors, body structure, roof frame, panels' retainers, roof, dash and console reinforcement, fuel tank, Teflon tiers rings, tiers, reinforce front and back bumpers, sides, two way 100 W intercom, electric system protection and main battery box.
Added weight: 800 Kg average, depending on vehicle structure.

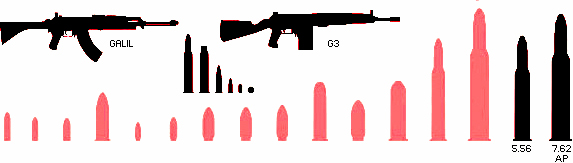

LEVEL 6

Ballistic protection against: 7.62X51 Full Metal Jacket, 5.56 AP* (*Armor Piercing).
Windows Glass: 46 mm aprox.
Armoured parts: Entire cap in ballistic steel, floor covered with explosive wave dissipation and anti-fragmentation fibber, doors, roof frame, panels' retainers, roof, dash and console reinforcement, fuel tank, Teflon tiers rings, tiers, radiator full ballistic protection, bonnet (hood), reinforced front and back bumpers, sides, two way 100 W intercom, electric system protection and main battery box.
Added weight: 1050 KG average, depending on vehicle structure



LEVEL 7
Ballistic protection against: 7.62X51mm/ AP*, FJ, BP, HC1 (*Armor Piercing).
Windows Glass: 76 mm aprox.
Armoured parts: Entire cap in ballistic steel, floor covered with explosive wave dissipation and anti-fragmentation fibber, doors, roof frame, panels' retainers, roof, dash and console reinforcement, fuel tank, Teflon tiers rings, tiers, radiator full ballistic protection, bonnet (hood), reinforced front and back bumpers, sides, two way 100 W intercom, electric system protection and main battery box.
Added weight: 1400 KG average, depending on vehicle structure



'B' TABLE

Type Class Weapon Ammunition Range Velocity Shots Spacing
Light Armored Vehicles B2 9mm 5 358 m/s 3 120mm
B3 357 Magnum 5 430 m/s 3 120mm
B4 44 Magnum 5 440 m/s 3 120mm
Fully Armored Vehicles B4+ AK47 Ball 7.62 x 39 10 710m/s 3 120mm
B5 5.56 x 45 Steel Core SS 109 Round 10 950m/s 3 120mm
B6 7.62 x 51 Ball 10 830m/s 3 120mm
B6+ 5.56 x 45 Lead M193 Round 30 980m/s 3 120mm
Armor Piercing B7 7.62 x 51 AP 30 820m/s 3 120mm
B7 AK47 7.62 x 39 AP 30 715m/s 3 120mm


NIJ TABLE

Standard Threat Velocity Shots Spacing (in)
NIJ I Part 1 .22 LR HV 40 gr Lead 1,010 to 1,090 5 4.24
NIJ I Part 2 .38 Special 158 gr RNL 800 to 900 5 4.24
NIJ II-A Part 1 9 mm Parabellum 124 gr FMJ 1,050 to 1,130 5 4.24
NIJ II-A Part 2 .357 Magnum 158 gr JSP 1,200 to 1,300 5 4.24
NIJ II Part 1 9 mm Parabellum 124 gr FMJ 1,135 to 1,215 5 4.24
NIJ II Part 2 .357 Magnum 158 gr JSP 1,345 to 1,445 5 4.24
NIJ III-A Part 1 .44 Magnum 240 gr SWC 1,350 to 1,450 5 4.24
NIJ III-A Part 2 9 mm Parabellum 124 gr FMJ 1,350 to 1,450 5 4.24
NIJ III .30 cal. 7.62 NATO 147 gr M8 2,700 to 2,800 5 4.24
NIJ IV .30 cal. 30-06 166 gr M2 AP 2,800 to 2,900 1 -
